Visual Elements¶

Hamr provides rich visual elements for result items. This page covers sliders, switches, badges, gauges, and more.

Slider Items¶

Sliders let users adjust numeric values (volume, brightness, etc.).

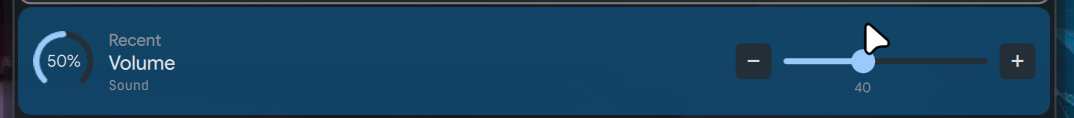

Slider showing volume control

Simple format (stdio plugins):

{
    "type": "results",
    "results": [
        {
            "id": "volume",
            "type": "slider",           # Makes this a slider
            "name": "Volume",
            "icon": "volume_up",
            "value": 75,                # Current value
            "min": 0,                   # Minimum
            "max": 100,                 # Maximum
            "step": 5,                  # Increment
            "unit": "%"                 # Optional: suffix
        }
    ]
}

Extended format (socket plugins with gauge):

{
    "type": "results",
    "results": [
        {
            "id": "volume",
            "name": "Volume",
            "icon": "volume_up",
            "resultType": "slider",     # Alternative to "type"
            "value": {                  # Object for extended control
                "value": 75,
                "min": 0,
                "max": 100,
                "step": 5,
                "displayValue": "75%"
            },
            "gauge": {                  # Optional: show gauge alongside
                "value": 75,
                "max": 100,
                "label": "75%"
            }
        }
    ]
}

Field	Type	Description
`type`	string	`"slider"` (simple format)
`resultType`	string	`"slider"` (extended format)
`value`	number/object	Current value (number or object with min/max/step)
`min`	number	Minimum value (simple format)
`max`	number	Maximum value (simple format)
`step`	number	Step increment (also determines decimal precision)
`unit`	string	Unit suffix (e.g., `"%"`, `"px"`, `"ms"`)
`displayValue`	string	Override display text entirely
`gauge`	object	Optional gauge to display alongside slider

Handling Slider Changes¶

When user drags the slider:

{
    "step": "action",
    "selected": {"id": "volume"},
    "action": "slider",
    "value": 80                         # New value
}

Handle it and return updated results:

if action == "slider":
    item_id = selected.get("id")
    new_value = input_data.get("value", 0)

    # Apply the change
    set_volume(item_id, new_value)

    # Return updated results
    print(json.dumps({
        "type": "results",
        "results": get_all_sliders(),
        "navigateForward": False  # Don't change navigation
    }))

Example plugin: sound/

Switch Items¶

Switches are boolean toggles (mute, enable/disable).

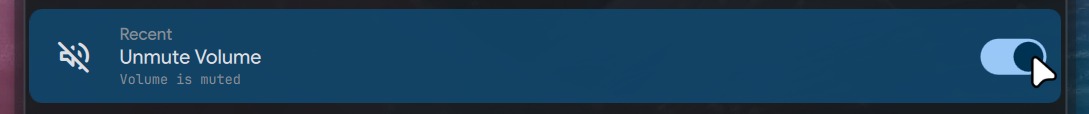

Switch showing mute toggle

Simple format (stdio plugins):

{
    "type": "results",
    "results": [
        {
            "id": "mute",
            "type": "switch",           # Makes this a switch
            "name": "Mute Volume",      # Action description
            "description": "Mute audio output",
            "icon": "volume_up",        # Shows current state
            "value": False              # Current state
        }
    ]
}

Extended format (socket plugins):

{
    "type": "results",
    "results": [
        {
            "id": "volume-mute",
            "name": "Mute Volume",
            "description": "Mute system audio output",
            "icon": "volume_up",
            "resultType": "switch",     # Alternative to "type"
            "value": False
        }
    ]
}

Naming Convention¶

The name describes the action, the icon shows the current state:

State	Name	Icon
Not muted	"Mute Volume"	`volume_up`
Muted	"Unmute Volume"	`volume_off`

Handling Switch Changes¶

When user toggles:

{
    "step": "action",
    "selected": {"id": "mute"},
    "action": "switch",
    "value": True                       # New value after toggle
}

Return an update response:

if action == "switch":
    new_value = input_data.get("value", False)
    set_mute(new_value)

    print(json.dumps({
        "type": "update",
        "items": [
            {
                "id": "mute",
                "value": new_value,
                "name": "Unmute Volume" if new_value else "Mute Volume",
                "icon": "volume_off" if new_value else "volume_up"
            }
        ]
    }))

Example plugin: sound/

Badges¶

Small circular indicators beside the item name. Max 5 per item.

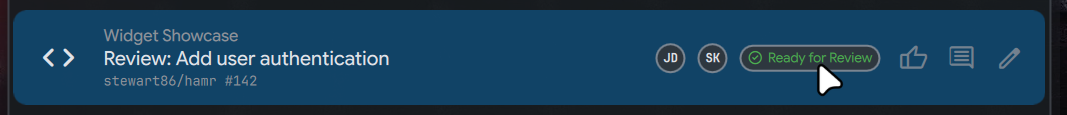

Item with avatar badges and status indicator

{
    "id": "task-1",
    "name": "Review PR",
    "icon": "task",
    "badges": [
        {"text": "JD"},                        # Initials
        {"text": "!", "color": "#f44336"},     # Alert (red text)
        {"icon": "verified", "color": "#4caf50"},  # Icon badge
        {"image": "/path/to/avatar.png"}       # Avatar image
    ]
}

Field	Type	Description
`text`	string	1-3 characters (initials)
`icon`	string	Material icon (overrides text)
`image`	string	Image path (overrides text)
`color`	string	Text/icon color (hex)

Note: Background is always theme default. Use color to tint text/icons.

Chips¶

Pill-shaped tags for longer text. Show beside the item name.

Item with category chips

{
    "id": "task-1",
    "name": "Review PR",
    "icon": "task",
    "chips": [
        {"text": "In Progress"},                  # Simple label
        {"text": "Frontend", "icon": "code"},     # With icon
        {"text": "Urgent", "color": "#f44336"}    # Colored
    ]
}

Field	Type	Description
`text`	string	Label text
`icon`	string	Optional icon before text
`color`	string	Text/icon color (hex)

Gauge¶

Circular progress indicator shown in place of the icon.

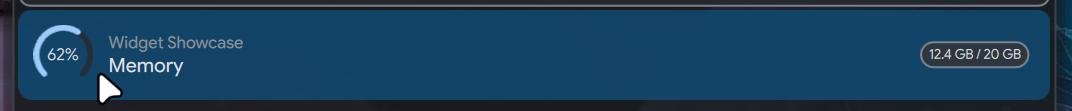

Item with circular gauge showing 62%

{
    "id": "disk",
    "name": "Disk Space",
    "gauge": {
        "value": 75,           # Current value
        "max": 100,            # Maximum value
        "label": "75%"         # Center label
    }
}

Field	Type	Description
`value`	number	Current value
`max`	number	Maximum value
`label`	string	Center text (optional)

Graph¶

Line graph shown in place of the icon. Good for trends/history.

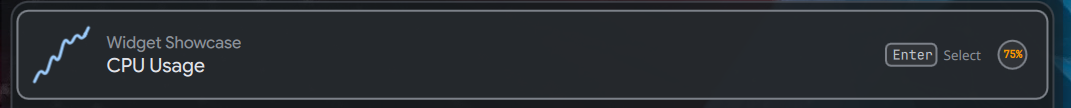

Item with CPU usage graph

{
    "id": "cpu",
    "name": "CPU Usage",
    "graph": {
        "data": [45, 52, 48, 61, 55, 50, 47],  # Y values
        "min": 0,                               # Optional: min Y
        "max": 100                              # Optional: max Y
    }
}

If min/max not provided, auto-scales from data.

Progress Bar¶

Horizontal progress bar shown below the name. Replaces description.

Item with download progress bar

{
    "id": "download",
    "name": "Downloading file.zip",
    "icon": "downloading",
    "progress": {
        "value": 65,           # Current value
        "max": 100,            # Maximum value
        "label": "65%",        # Text beside bar
        "color": "#4caf50"     # Custom bar color
    }
}

Field	Type	Description
`value`	number	Current progress
`max`	number	Maximum value (default: 100)
`label`	string	Text shown beside bar
`color`	string	Custom bar color (hex)

Preview Panel¶

Add a preview field to show rich content in a side panel on hover/selection.

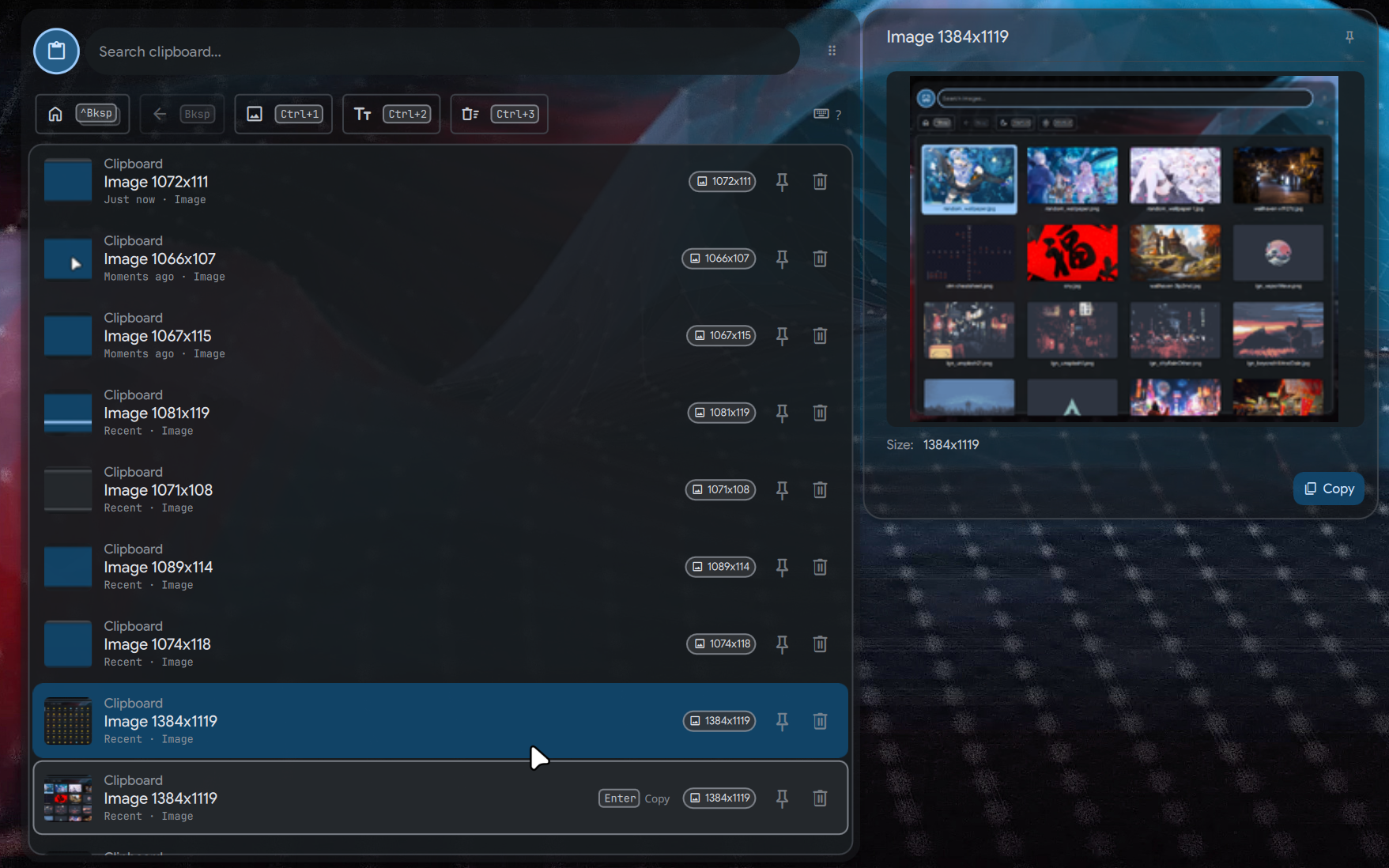

Item with image preview in side panel

{
    "id": "image-1",
    "name": "sunset.jpg",
    "icon": "image",
    "preview": {
        "type": "image",                    # "image", "markdown", "text", "metadata"
        "content": "/path/to/sunset.jpg",
        "title": "Sunset Photo",
        "metadata": [
            {"label": "Size", "value": "3840x2160"},
            {"label": "Date", "value": "2024-01-15"}
        ],
        "actions": [
            {"id": "open", "name": "Open", "icon": "open_in_new"}
        ],
        "detachable": true                  # Allow pinning
    }
}

Preview Types¶

Type	Content Field	Description
`image`	File path	Shows image with optional metadata
`markdown`	Markdown text	Renders markdown
`text`	Plain text	Monospace display
`metadata`	(uses metadata array)	Key-value pairs only

Detachable Previews¶

Users can pin previews to a floating panel that persists after launcher closes.

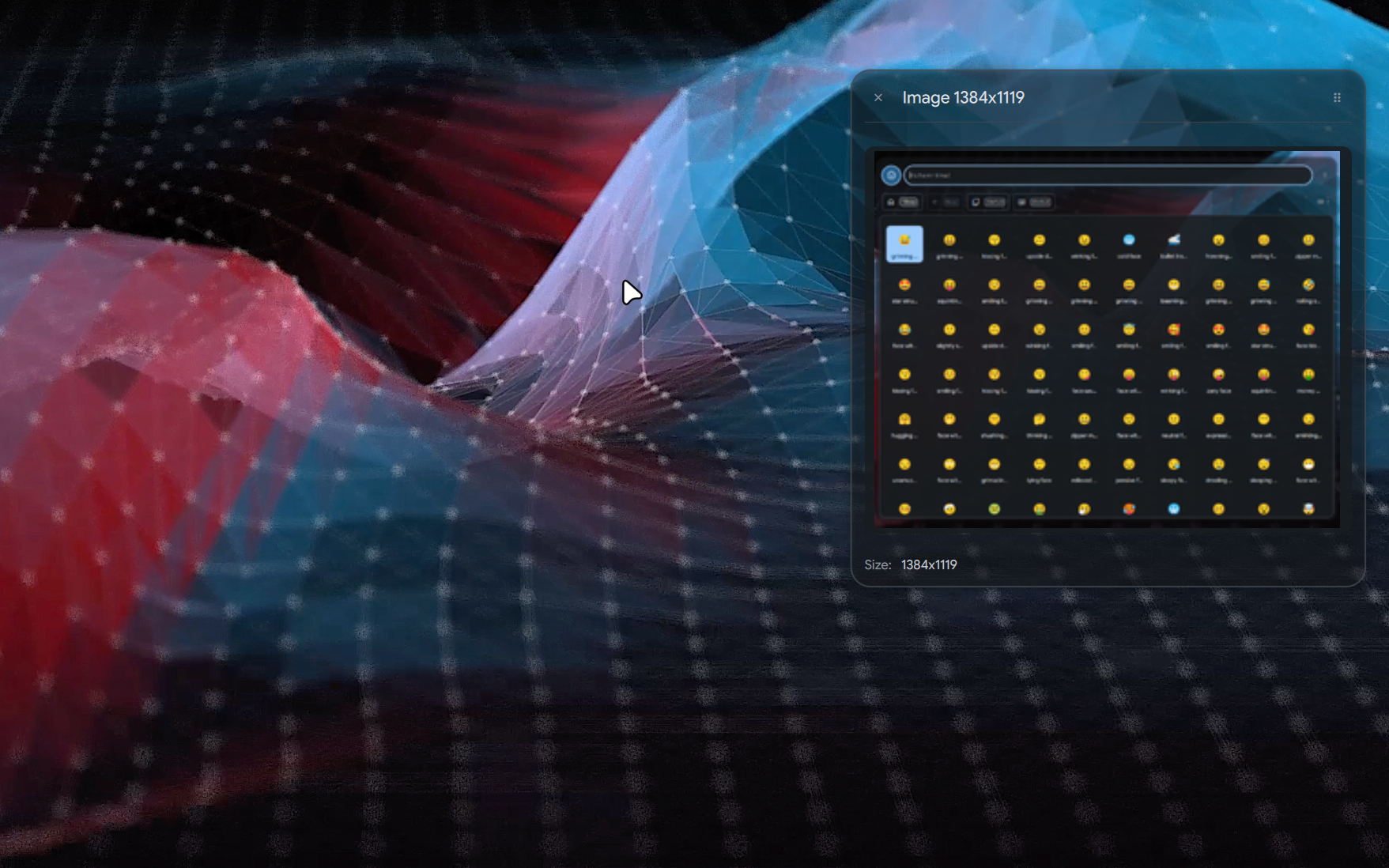

Detached preview panel floating on desktop

Example plugins: pictures/, notes/

Visual Priority¶

If multiple visual elements are set on an item:

Icon area priority: graph > gauge > thumbnail > icon

Progress bar: Independent, replaces description.

Icon Types¶

Material Icons (Default)¶

Use any icon from Material Symbols.

{"id": "1", "name": "Item", "icon": "star"}

Common icons:

Category	Icons
Navigation	`arrow_back`, `home`, `menu`, `close`
Actions	`open_in_new`, `content_copy`, `delete`, `edit`, `add`
Files	`folder`, `description`, `image`, `video_file`
UI	`search`, `settings`, `star`, `favorite`, `info`

System Icons¶

For desktop application icons, set iconType: "system":

{
    "id": "chrome",
    "name": "Google Chrome",
    "icon": "google-chrome",      # From .desktop file
    "iconType": "system"
}

Auto-detection: Icons with . or - are assumed system icons. Simple names like btop need explicit iconType: "system".

Thumbnails¶

Show image previews instead of icons:

{
    "id": "file-1",
    "name": "photo.jpg",
    "thumbnail": "/path/to/photo.jpg"
}

Use sparingly - thumbnails load images and impact performance.

Updating Visual Elements¶

Use type: "update" to patch items without replacing the entire list:

{
    "type": "update",
    "items": [
        {
            "id": "volume",
            "gauge": {"value": 80, "max": 100, "label": "80%"},
            "badges": [{"text": "M", "color": "#f44336"}]
        }
    ]
}

This preserves selection and focus - ideal for:

Slider adjustments
Live status updates
Real-time data changes

Example plugin: sound/
